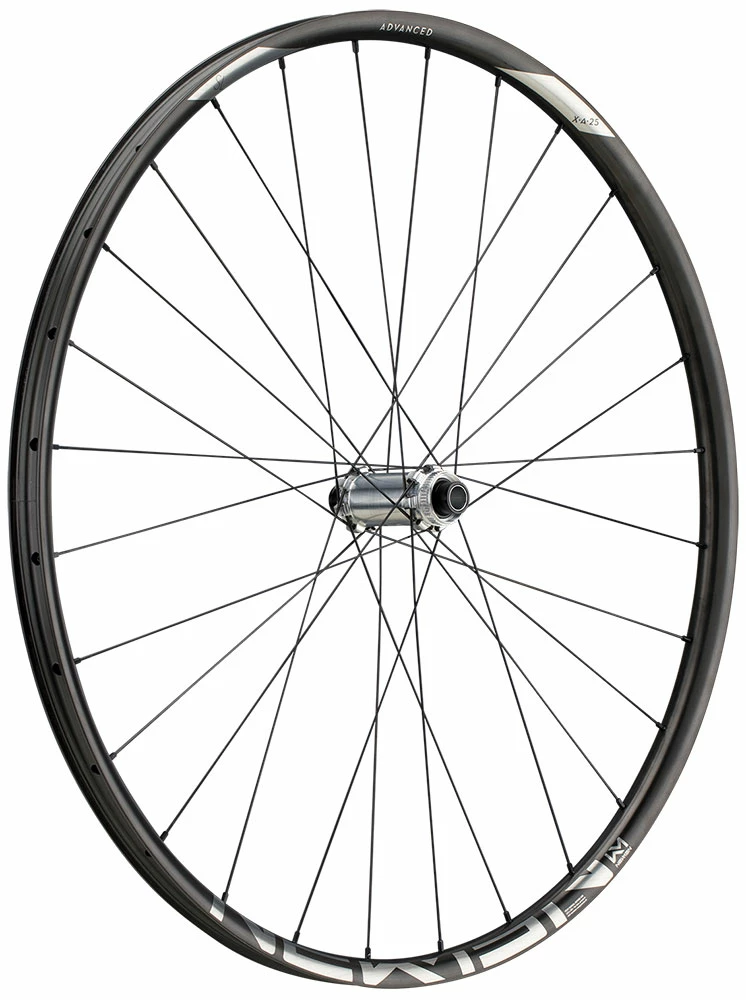

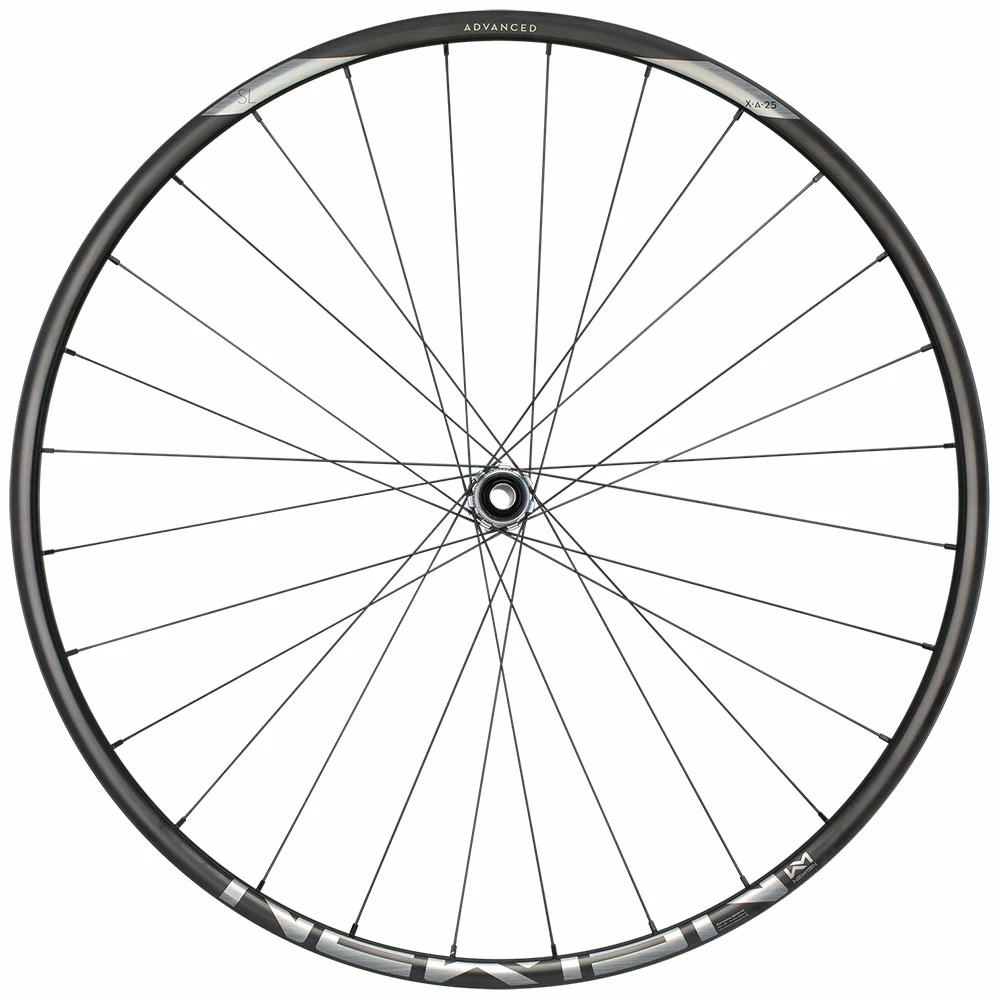

Newmen Advanced SL X.A.25 29″ Boost Front Wheel

Lightweight rims with just the right amount of stiffness make for blazing fast XC wheel. Combining this hub technology with the new Advanced SL X.A. carbon fiber rim results in a wheel with focus on durability and light weight.

Minimum weight, maximum performance: the Advanced SL X.A.25 Wheel from Newmen

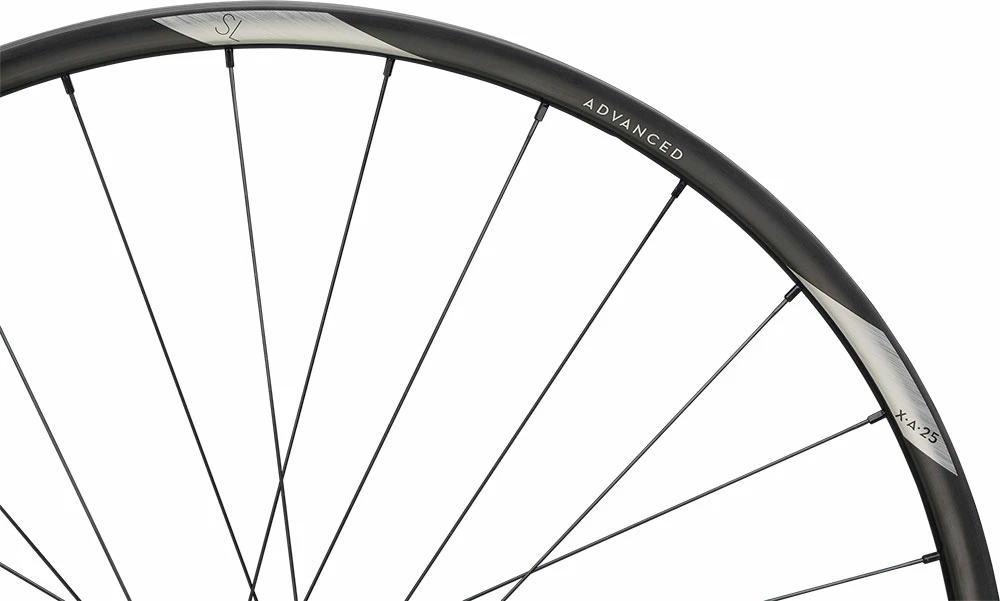

NEWMEN Advanced SL X.A.25 and X.A.30 are the successors of the proven Advanced SL X.22 carbon fiber rim. Newmen has set itselves the target to create XC wheelsets which are as fast as possible while keeping the price reasonable. An important factor when pursuing seconds between the tape is rim width. Correct rim width is required in order to enable low tire pressures. This allows for maximum grip at minimum rolling resistance without squirming tires and reduced risk of rim strikes. For this reason there are not one, but two successors for the X.22 rims. All testing has concluded that, for XC purposes, 25mm inner width are ideal for tires up to 2.2″ and 30mm rims are ideal for tires from 2.25″ and upwards. By optimizing the wall thickness around the whole rim profile, Newmen has been able to achieve an industry-leading strength-to-weight-ratio and the high durability of the rim flanges allows for use on lightweight trailbikes. Shallow rim profiles provide comfort and grip while maintaining fast acceleration and responsiveness when putting power down.

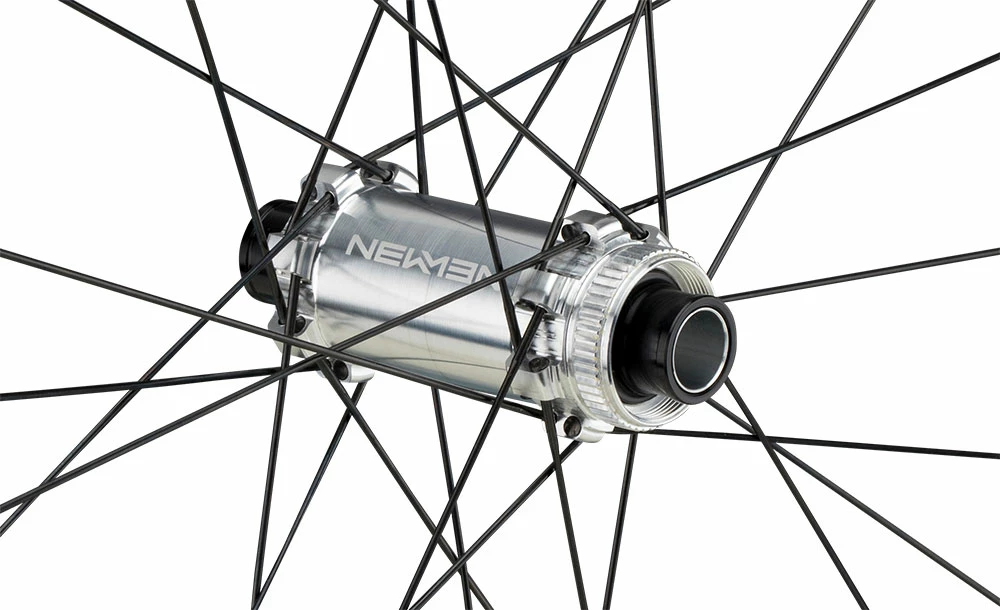

All new Advanced SL wheels are based around the revised Evolution SL hubs. This new design is strong enough for us to officially allow all FADE hubs for E-Bike use. At the sime time Newmen have developed a pawl geometry which reduces noise to a minimum because as we all know: A quiet bike is a fast bike. You can now litereally hear the tires gripping and during mass-start races your competitors won’t hear you closing up. The hubs have double sealed bearings with minimal tolerances which are generously filled with grease because good durability means less hassle and more fun.

---

Product features – Newmen Advanced SL X.A.25

• Use: XC
• Size: 29″
• Tubeless Ready: yes
• Diameter: 622mm
• Rim width inner: 25mm
• Required rim tape: 27mm
• Hub: Straightpull
• Axle standard: 15x110mm
• Hole count: 28
• Disc standard: Center Lock
• Spokes: Sapim D-Light
• Lacing: 3-cross
• Max. System weight: 125kg (body weight + bike + equipment)

Material

• Hub: Aluminium 7075
• Rim: UD Carbon

Color

• black

Weight

• 565g (manufacturer information)

---

Scope of delivery

• 1 x Newmen Advanced SL X.A.25 29″ Boost Frontwheel
• 1 x Tubeless Strip

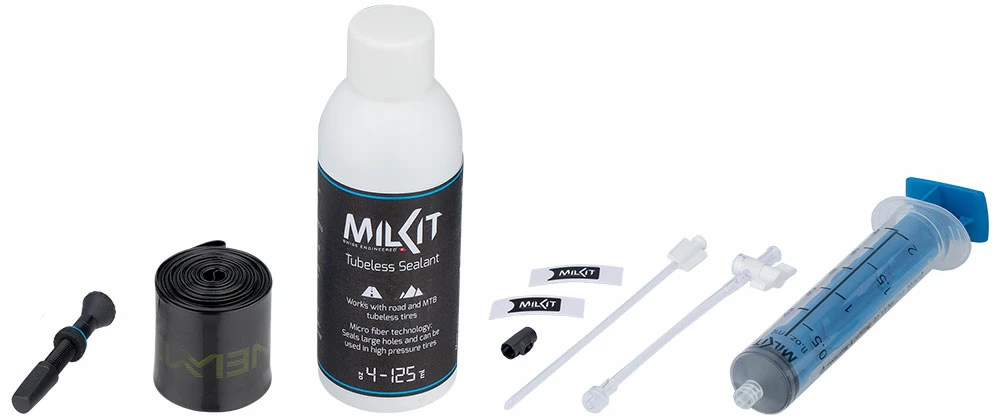

• 1 x Milkit Tubeless Set
